Hotels NEW Electric polyurethane pu Spray Insulation Machine FD-E3

1 unit
MOQ
Hotels NEW Electric polyurethane pu Spray Insulation Machine FD-E3
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Condition: New
Processing Type: Foaming Machine
Machine Type: PU foam
Voltage: 230V 1-phase 230V 3-phase / 400V 3-phase
Dimension(L*W*H): 764*573*1210mm
Power (kW): 10
Weight (KG): 150 KG
Warranty: 2 years
Key Selling Points: Energy saving
Showroom Location: United States
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Bevera
Marketing Type: New Product
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine
인증: ce
After-sales Service Provided: Video technical support
기본 정보
인증: ce
결제 및 배송 조건
Packaging Details: in wooden case
Supply Ability: 100 Set/Sets per Month
제품 설명
Product Overview

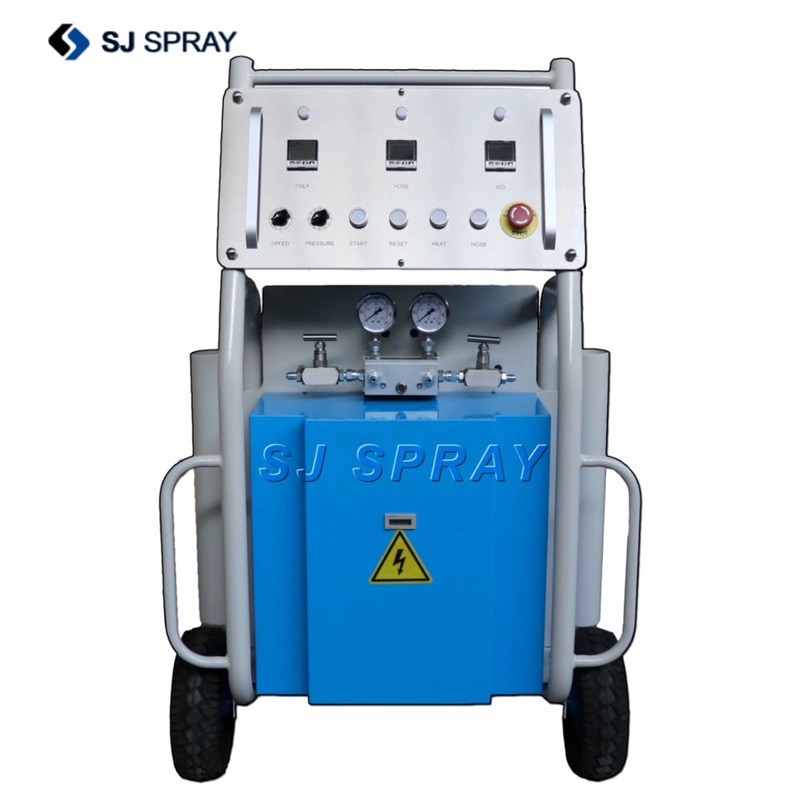

Electric polyurethane spray foam injection machine FD-E3

The new electric polyurethane spraying machine can be adjusted in speed, suitable for use in different scenarios of spraying and injection.Its ability to fit through a narrow doorway makes it an excellent machine for indoor demolition work.
Suitable for family use. The machine body is light and flexible, movable.
FEATURES AT A GLANCE
Polyurethane spray machine FD-E3

1、Power:Electricity
2、Color:Customized
3、Gun Type:Spray/Injecting
4、Whole Power: 10000W
5、Max output:12kg/min

Left elevation
Front elevation
Right elevation
PRODUCT SPECIFICATIONS
FD-E3
1.The equipment mechanical transmission efficiency is more than 96%, it is power-saving. And the equipment sealing are imported from the famous brands. It can save much cost for you. 2.More durable and more efficient than air/pneumatic drive machine, only a small air compressor with a displacement of 0.25m³/min is required.Price is similar to the pneumatic machine. 3.Electronic components and seals are all imported brands, which are stable and not easy to break after long-term use. 4.The pipeline has voltage protection to ensure the safety of electricity use.Spray gun, heated hose can be used with G/R/A/C/O.
5.Applicable to home power supply, this machine can use with 220V,400V 3phase, or 220V,115V single phase. 6.The speed can be adjusted to precisely control the flow rate.The spray work pressure and the stop work pressure adopts 12 gear position. It is suitable for different spray and injection work areas. 7.The voltage is suitable for home use, the working noise is small, and it will not disturb your neighbor. 8.Suppprt OEM,and one piece can be customized for free.
No
Item
Data
1
Data ratio of raw materials
1: 1 (fixed)
2
Raw material viscosity range
200-1000CPS (at working temperature)
3
Max working pressure
17MPa (170 bar)
4
Maximum output
2~10 kg / min (13.2~22.0 lb / min)
5
Voltage
220V 1-phase
220V 3-phase / 400V 3-phase
6
Machine size
764*573*1210mm
7
Net weight
180kgs
8
Gross weight
200kgs
9
Max heating hose length
60 meters(196.8feet)
PRODUCT CONFIGURATION
Two unit transfer pump
One unit spray gun
15 meters heated hose
