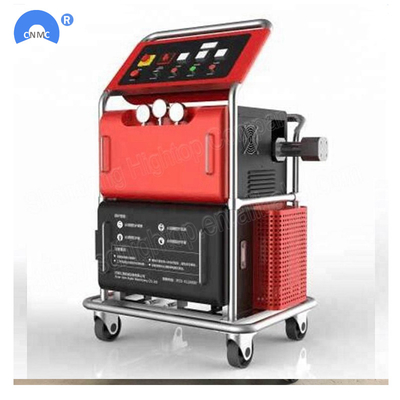

1:1 Hydraulic High Pressure Insulation Function Polyurethane Spray Foam Casting Liner Machine

1 Piece
MOQ
$2,800.00(1 - 9 Pieces) $1,000.00(>=10 Pieces)
가격
1:1 Hydraulic High Pressure Insulation Function Polyurethane Spray Foam Casting Liner Machine
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Condition: New
Processing Type: Foaming Machine
Product Type: Foam Net, Foam Net
Voltage: 380v, 380V
Dimension(L*W*H): 1100*1480*740
Warranty: 1 Year
인증: ce
After-sales Service Provided: Video technical support
Power: 30KW
Weight: 310KGS, 310KGS
power source: 380v 50HZ
air source: 36mpa
AB material output: 1:1
heating power: 30kw
raw output: 2-12kg/min
model: CNMC-58
drive model: pneumatic
기본 정보
인증: ce
Model Number: CNMC-58, pneumatic
결제 및 배송 조건
Packaging Details: standard exported package
Supply Ability: 100 Piece/Pieces per Month polyurethane foam machine
제품 설명
Product Description

High pressure Insulation Casting Coating function hydraulic polyurethane spray foam machine



Product Application

Polyurethane spraying machine is specially equipped with adjustment buttons according to different application habits of users. It can be adjusted according to the habits. The model specifications are different. Users can use it safely when using it to ensure that the polyurethane spraying machine equipment will not be used during use. Because of the application effect of polyurethane spraying, our manufacturer's polyurethane spraying machine equipment is equipped with special instructions at the moment, which can be put into use with confidence, and can meet the application needs of many users at present, easy to apply, fast, practical effect

SPECIFICATIONS FOR CNMC-58
Power source
3- phase 4- WIRES 380V 50Hz
Heating power
30KW
Driven mode
hydraulic
Air source
0.5~0.8 MPa ≥1.2m³/min
Raw output
2~17 kg/min
Maximum output pressure
36MPA
AB material output ratio
1:1
Spray gun
1 Set
Feeding pump
2 sets
Heating hose
15meters
Gun connection pipe
2pieces
Feed delivery pipe
5meters
pneumatic pipe
5 meters
Packing size
860mm X 860mm X 1560mm

Main Features

1.The heating power of new one is 30KW, making sure the fast heat-up even under cold weather.

2.The maximum material outflow has upgraded to 17kg/min so the machine can perform well during large volumn injection project.

3.The new one weights lighter than the previous one, because we use the best yet ligter material from outside to inside, frame, booster pump, all the main parts of the machine, making sure the good quality and durable.

4.We use the hydraulic station with the rock-solid quality, guaranteeing the heart of the machine-lasts longer.

Detailed Images
Spare parts
Packing & Delivery
Certifications
