제품 사양

Warranty: 1 year

Customized support: OEM, ODM, OBM, Software reengineering

Model Number: HGW

Power: Electronic

Control method: Computer Control

인증: CE, ISO

기본 정보

인증: CE, ISO

Model Number: HGW

결제 및 배송 조건

Packaging Details: standard export package

Supply Ability: 100 Set/Sets per Month

제품 설명

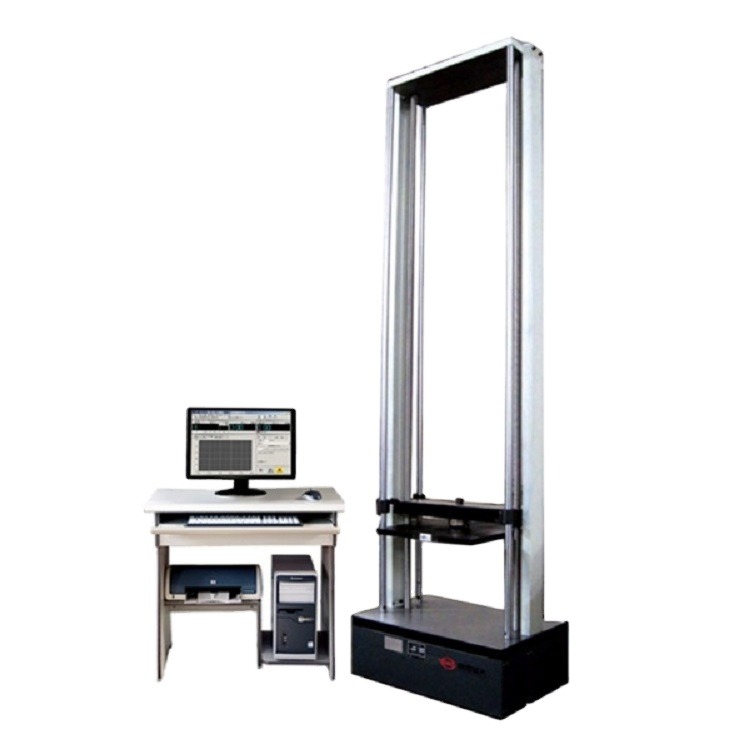

WDW Series Computerized Universal Tensile Testing Machine

Product Description

Introduction

WDW series electromechanical testing machines offer force, displacement or deformation closed loop testing in tension,
compression, flexure, shear, tear and peel etc.
The machine can be equipped with a variety of accessories including: grips, fixtures, compression frames, thermal cabinets and extensometers covering all relevant applications as testing of rubber, plastics, foils, films, textiles, adhesives, paper, foods, foams, timber, wires or other metallic or non-metallic specimens and medical, electronic and other components. The load frames are rigid constructed, providing superior axial and lateral stiffness.

3 point bending test machine 300kn electronic universal testing machine 300kn mechanical test equipment 30kn computerizedelectronic universal testing 30KN floor model universal testing systems 30kn universal tensile testing machine

Standards

ASTMA370, ASTME4, ASTME8, ASTME9, ASTM D638, ASTM D882, ASTM D3039,ASTM, D3479, ASTM E517,ASTM, D695, ASTM D6641, ASTM D3410, ASTM D7791, ASTM D412, ISO6892, ISO527-3, ISO527-4, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002, GB16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008, GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc.

Specification

Model	WDW-10E	WDW-20E	WDW-30E	WDW-50E	WDW-100E
Structure	column and 2 Ball Screw
Max. Load(kN)	10	20	30	50	100
Tensile space(mm)	670					770	650
Compression space(mm)	900					1000	1000
Effective test width	450					450	550
Host Weight (kG)	370					420	680
Power Supply	220V/50-60Hz
Controller	24 bit AD, external controller
communication mode	USB 2.0
Hand control box	320x240 Display Sscreen，8 key control
Servo motor	TAIWAN “TECO”
Speed(mm/min)	0.01-1000							0.01-500
Displacement resolution	0.4 pm							0.2 pm
Load cell	USA（max load）: one can add more load cell
Load accuracy	Class 0.5, EN 10002-2 Grade0.5, ISO75001-1 Class 0.5, BS 1610 Class 0.5, ASTM E4, and JIS B7721 Class 0.5
Measuring range	0.2％～100％
strong electric drive system	24V voltage control, with over current overloading protection function
Position limit switch	Upper and lower lights
Power	Power light,leak current protection device
Automatic protection	Overload 10%, automatic protection
Position limit protection	Hall switch
Equipment level adjusting device	φ80mm vibration-absorptive cushioning iron
Hand control box fixing device	Standard

Please contact KASON directly for best quotation

Application

This series material testing machine product group was primarily developed for standardized tests on ma- terials and components. Used in conjunction with the intuitive HKtest software. Test Typical: wide range of tension, compression, bending, shearing and low cycle test, include metal, building components, rubber, plastic, spring, high strength steel (HSS), aerospace and automotive structures, screws, nuts,large fasteners, wood products etc.
