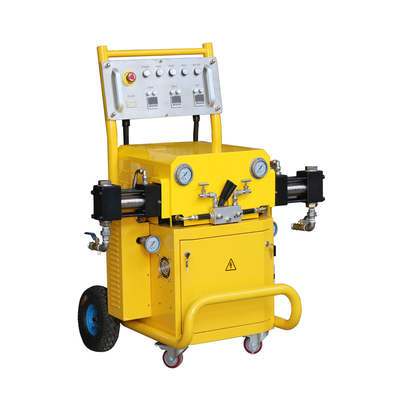

Hydraulic Type Polyurethane Spray Foam Machine
Hydraulic polyurethane spray machine used for a wide range. Such as, cold storage spray, refrigerated trucks spraying, roof spraying, industrial anti-corrosion, cabin, carriages, car bed liners, tanks.
Polyurethane hydraulic spray foam machine with touch screen can be used for various construction environment with spraying a variety of two-component spray materials and has been widely used in embankment waterproof, pipeline corrosion, auxiliary cofferdam,tanks, pipe coating, cement layer protection, wastewater disposal, roofing, basement waterproofing, industrial maintenance, wear-resistant linings, cold storage insulation, wall insulation and etc. Hydraulic polyurethane spray foam machine CNMC-300 makes the polyurethane fogging well, more shapely.
Mia Zhang
Whatsapp +86 18253190667
Email:cnmc012(@)chnmach.com
|
Project |
CNMC-300 project polyurethane spraying machine |
|
Proportion Fixed Mainframe |
1 set |
|
Self-cleaning spray gun |
1 set |
|
Gross weight |
100KG |
|
Feed pump |
2 sets |
|
Heated hose |
49.2 ft (15 m) |
|
Data ratio of raw materials |
1: 1 (fixed) |
|
Raw material viscosity range |
200-1000CPS (at working temperature) |
|
Working pressure |
20 MPa (200 bar) |
|
Maximum Fluid Temperature |
88 ° C (190 ° F) |
|
Maximum output |
14 kg / min (22 lb / min) |
|
Each heater power |
3000W |
|
Heating hose power |
1000W / 15m |
|
Total power |
10000W |
|
Voltage |
230V 1-ph / 400V 3-ph/230V 3-ph |
|
Machine size |
870mm * 700mm * 1150mm |
